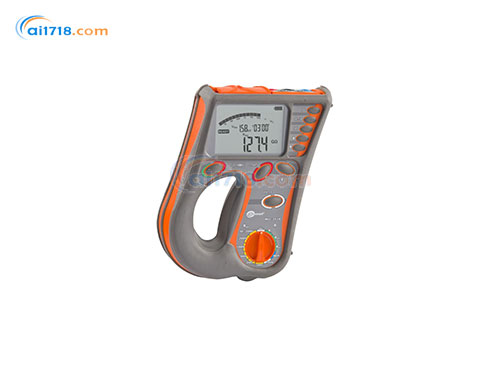

波蘭SONEL S.A.（索耐）　MIC-2510絕緣電阻測試儀

型號：MIC-2510絕緣電阻測試儀

品牌：波蘭SONEL S.A.（索耐）

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

波蘭SONEL S.A.（索耐）

SONEL S.A.成立于一九九四年六月。該公司的創始人是電氣工程師——指對特種測試設備及其市場需求具有豐富的知識。在1998年出現了的名稱和法律狀態的變化，SONEL S.A.正式成立。目前，公司主體位于Wa?brzych經濟特區的?widnica子區內。該公司于2008年六月...[查看更多]

瀏覽過此產品的用戶最終購買了

波蘭Sonel(索耐)MIC-2510絕緣電阻測試儀由愛儀器儀表網代理，本產品INSULATION RESISTANCE MEASUREMENT UP TO 2 TΩ IN ACCORDANCE WITH IEC 61557 - 2，防護等級IP54。現在熱賣中，如需購買MIC-2510絕緣電阻測試儀，可通過ai1718.com的客服熱線聯系我們！

MIC-2510絕緣電阻測試儀產品簡介：
?INSULATION RESISTANCE MEASUREMENT UP TO 2 TΩ IN ACCORDANCE WITH IEC 61557 - 2
?FULL CAPTURE AND RECORDING OF MEASUREMENT CONDITIONS
?Insulation resistance measurement:
selectable measurement voltage 100, 250, 500, 1000 V or any in the range of 50 - 2500 V at 10 V resolution,
continuous indication of measured insulation resistance or leakage current,
automatic discharge of measured object capacitive voltage after the completion of insulation resistance measurement,
acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics,
metered T1, T2 and T3 test times from the range of 1...600 s for measuring one or two absorption coefficients (DAR, PI or Ab1, Ab2),
capability of automatic measurement of multi-wire cables with the additional AutoISO-2500 adapter,
indication of actual test voltage during measurement,
protection against measuring live objects.
?Continuity measurement of protective connections and equipotential bonding in accordance with EN 61557 - 4 with current > 200 mA.
?Circuit continuity and resistance measurement at low voltage.
circuit resistance measurement ( < 999 ) with current < 15 mA,
quick acoustic signaling for a circuit of resistance lower than 10,
compensation (automatic zero) of test lead resistance.
?Measurement of leakage current during insulation resistance testing.
?Measurement of capacity during the measurement of RISO.
?Continuous measurement of surrounding temperature with the capability of recording results in memory.
?DC and AC voltage measurement in the range of 0-600 V.
?990 cells of memory (11880 records) with the capability of wireless data transmission to a PC (with the USB-OR-1 adapter) or through a USB cable.
?Power supply from battery packs.

Electrical safety:
?type of insulation: double, in acc. with EN 61010 - 1 and IEC 61557
m?easurement category: IV 600 V (III 1000 V) in acc. with EN 61010 - 1
?case protection rating in acc. with EN 60529: IP54

Other technical specifications:
?power supply of the meter: SONEL L-1 NiMH 9.6 V battery pack
?weight of the meter: approx. 1,3 kg
?dimensions: 260 x 190 x 60 mm
?display: LCD segment display
?measurement results memory: 990 cells, 11880 records
?transmission of measurement results: USB or wireless interface
